Product Description

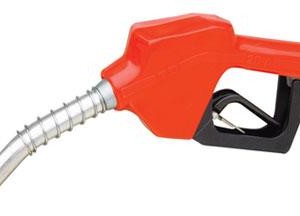

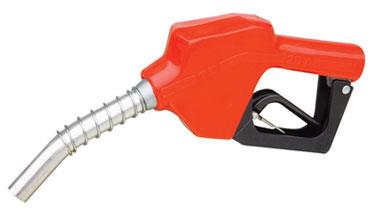

TD-20A / TD-20C Automatic Nozzle

TD-20A Automatic Nozzles are made of alloy aluminium and designed with today’s customer in mind. Small, trim, light weight, easy and convenient to use. TD-20C Automtic nozzle is improved base on TD-20A nozzle, with advantage of easy control on low flow
rate and automatic shut-off when spout points to horizon. It can well meet EN131012 European standard.

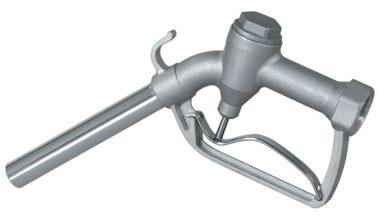

Maunal Nozzle

Technical Specification

Inlet：1″ NPT Female Thread

Diameter of Spout：15/16 ”

Flowrate：80 Litres/min

Pressure Max：50PSI

JYQ Oil Nozzle

JYQ-1 Oil Nozzle                                                              JYQ/M-1 Oil Nozzle with Meter

JYQ-1 oil nozzle, easily combined with JYM/L-1 meter to measure the dispensing of oil, with the construction of aluminum body swivel, a in-built balanced valve.
